Heliospheric current circuit

Hannes Alfvén considered the heliospheric current sheet to be part of a heliospheric current system, as he believed all cosmic plasmas to be part of a “plasma circuit”. [2] [3]

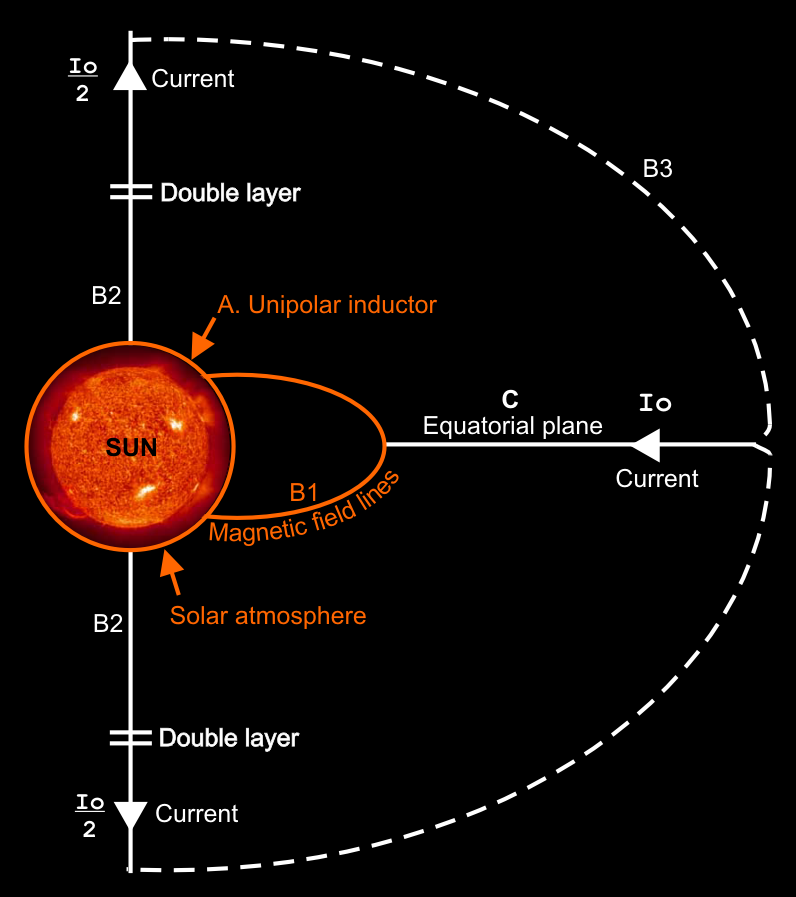

The Sun behaves as a unipolar inductor producing a current that flows outwards along both axes B2, and inwards in the equatorial plane, C, and along Solar magnetic field lines B1. The current closes at a large distance, B3.


Galactic inductor
Galactic current circuit with the galaxy as a unipolar inductor. Radio omissions from Cygnus A (left) is attributed to synchrotron radiation caused by acceleration of electrons through the axial galactic double layers. [1]
Alfvén wrote:

“The central body acts as a unipolar inductor and the e.m.f. is produced in region A. The mechanical force on the solar atmosphere dF = I ds x B tends to decelerate the rotation of the central body. The current transfers angular momentum from the central body to the surrounding plasma. Hence, we have a decelerating force applied to the solar atmosphere in the polar region. This should produce a non-uniform rotation of the Sun of the type which is observed (angular velocity decreasing with increasing latitude.Whether this interpretation is the correct quantitative explanation of the non-uniform rotation is an open question.
“In region B1 , the currents are field-aligned. It seems to be a general rule of cosmic physics that field-aligned currents frequently manifest themselves as luminous filaments (II.4). If the current in B1 is spread over an extended region, we should expect filaments. Equatorial streamers in the solar corona may be explained in this way. Similarly, in the polar region, the vertical currents near the solar surface may produce the polar plumes in the solar corona.
“The model predicts that there should be currents near the axis strong enough to match the current in the equatorial plane. Such currents should be observed when a spacecraft is sent to the high latitude regions. It is an open question to what extent they flow very close to the axis. They may be distributed over a large region and may in part flow at medium latitudes.”[3]

Galactic current circuit

Hannes Alfvén and Per Carlqvist speculate [4] on the existence of a galactic current sheet in which the galaxy acts as a unipolar inductor, a counterpart of the heliospheric current sheet, with an estimated galactic current of 1017 – 1019 Amps, that might flow in the plane of symmetry of the galaxy.


  1. Hannes Alfvén, “Keynote Address (1987) Double Layers in Astrophysics, Proceedings of a Workshop held in Huntsville, Ala., 17-19 Mar. 1986. Edited by Alton C. Williams and Tauna W. Moorehead. NASA Conference Publication, #2469″ (Record | Full text) FULL TEXT
  2. Alfven, H., “Double radio sources and the new approach to cosmical plasma physics” (1978) Astrophysics and Space Science, vol. 54, no. 2, Apr. 1978, p. 279-292. FULL TEXT PEER REVIEWED
  3. 3.0 3.1 Hannes Alfvén, “The Heliospheric Current System (sec III:4)” in Cosmic Plasma, Astrophysics and Space Science Library, Vol. 82 (1981) Springer Verlag. ISBN 90-277-1151-8 ACADEMIC BOOK
  4. Hannes Alfvén and Per Carlqvist, “Interstellar clouds and the formation of stars” (1978) in Astrophysics and Space Science, vol. 55, no. 2, May 1978, p. 487-509. FULL TEXT PEER REVIEWED
